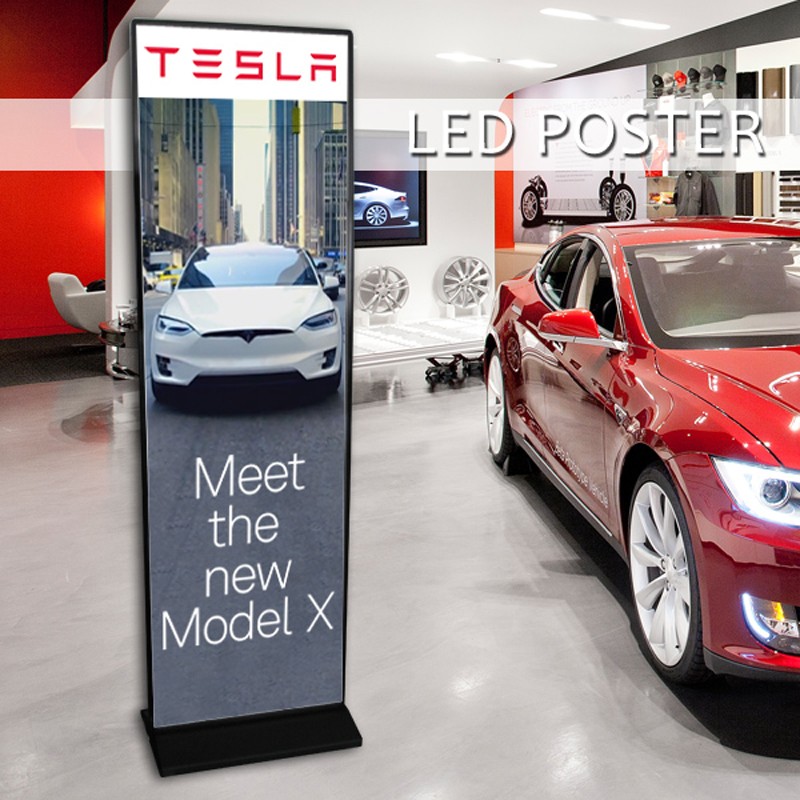

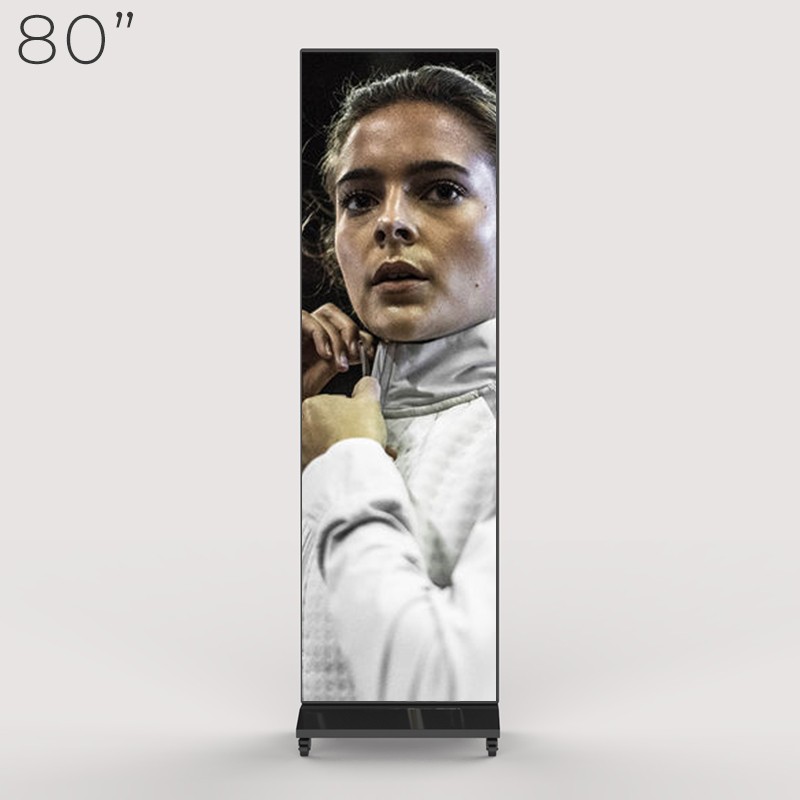

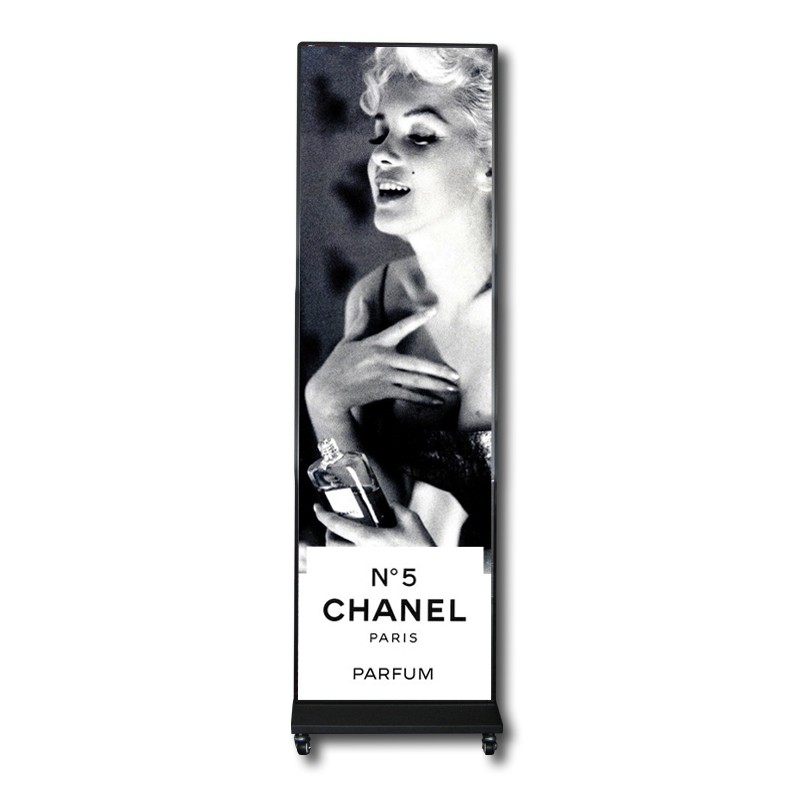

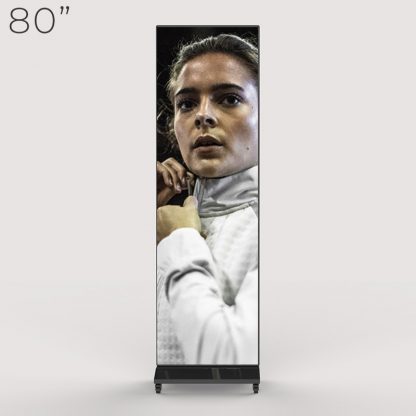

80″ LED POSTER – Point of Sale Display

Point of Sale Display

This sleek designed LED POSTER is multi functional, Cost effective and delivers High definition images.

Meer informatie aanvragen

Beschrijving

pdf iconLED Poster – Presentation sheet


FEATURES

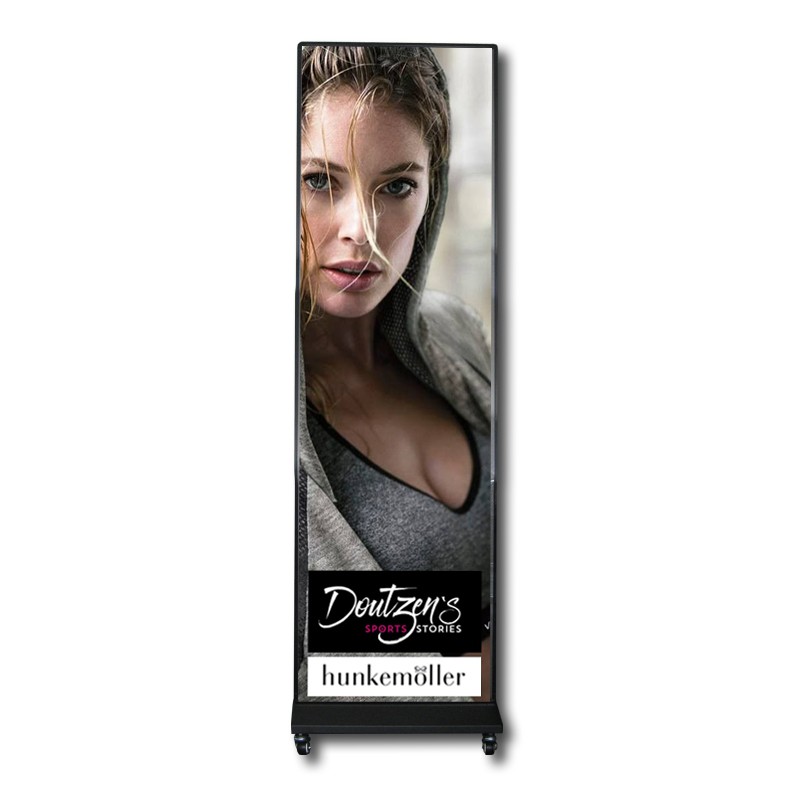

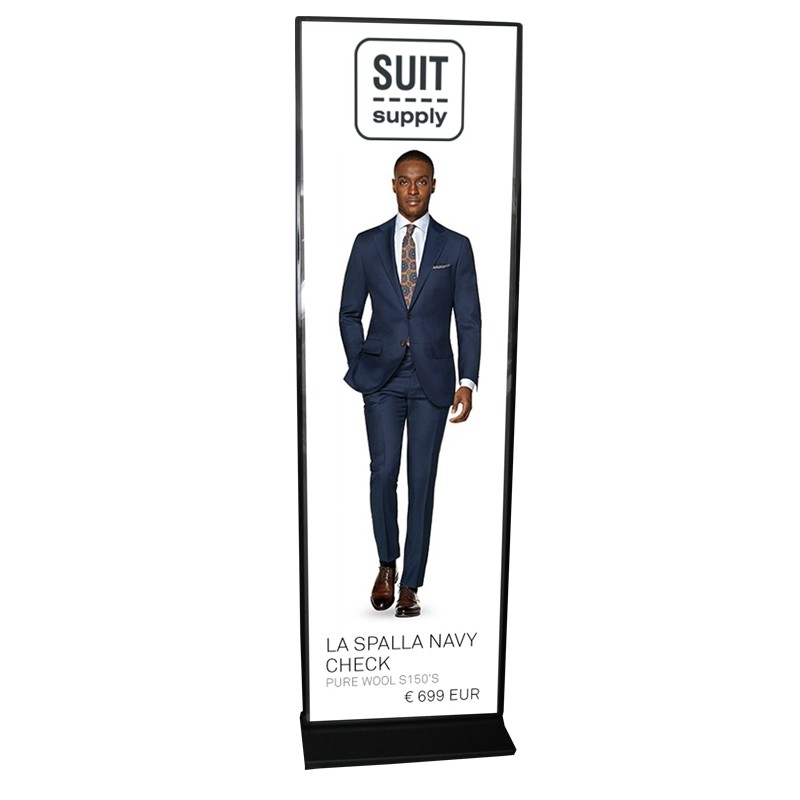

The poster is light weight (35kg), thin (40 mm) and is easy and fast to install. Ideal Point of sale product for your presentations.

INSTALLATION

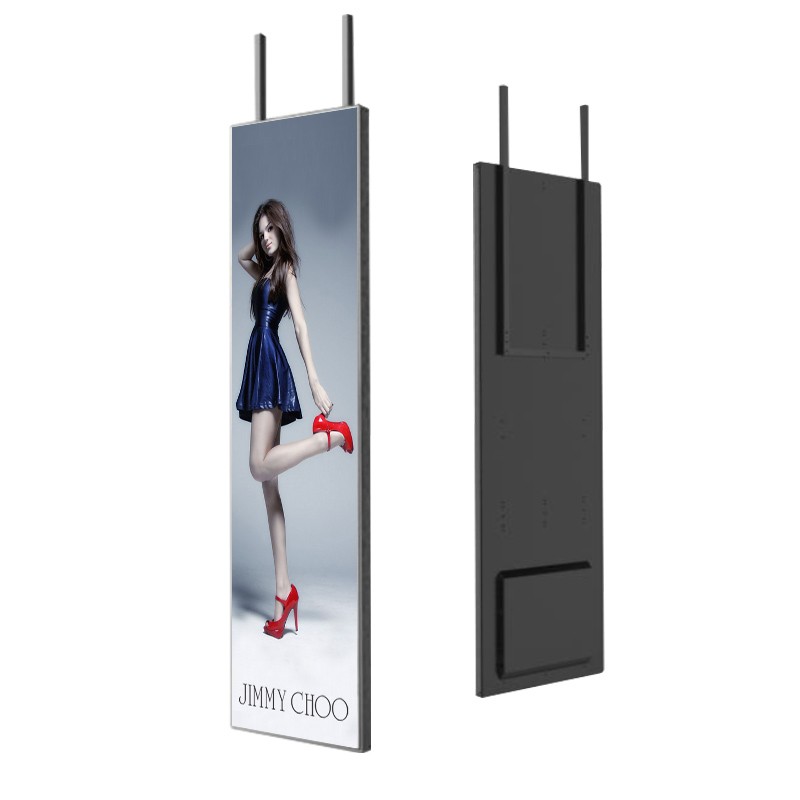

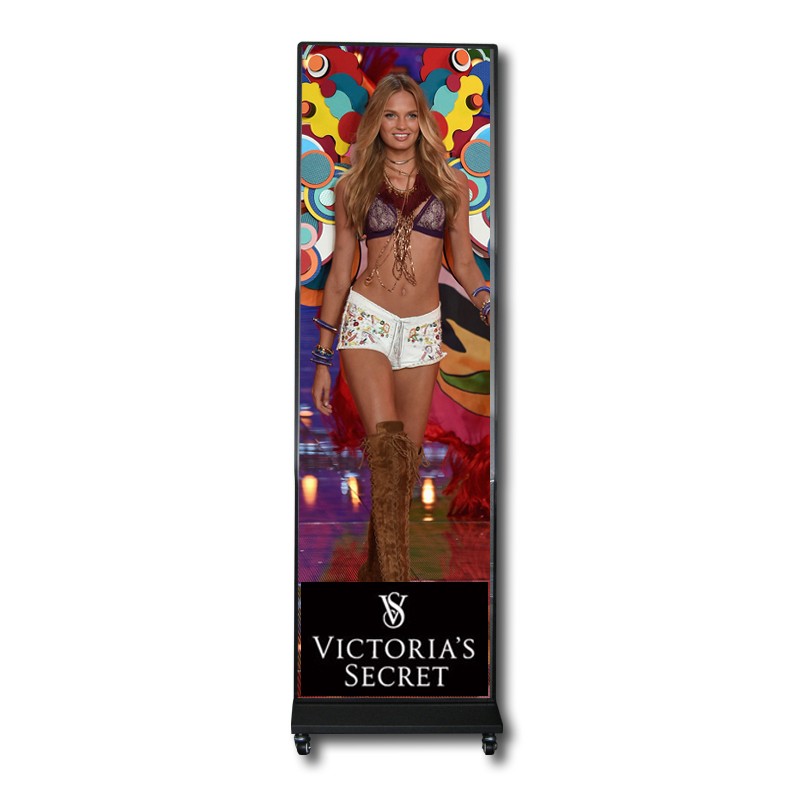

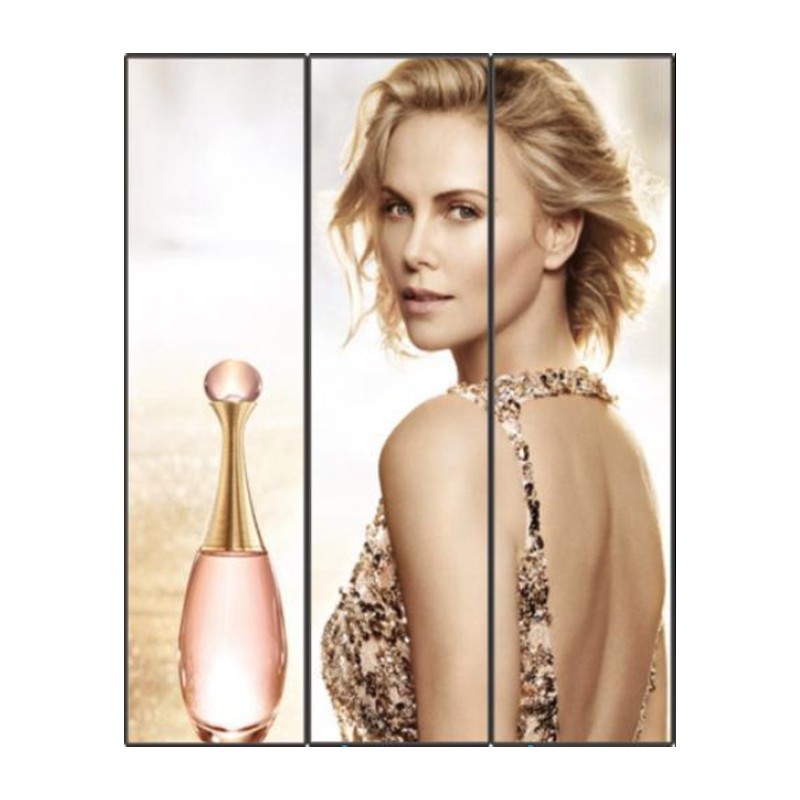

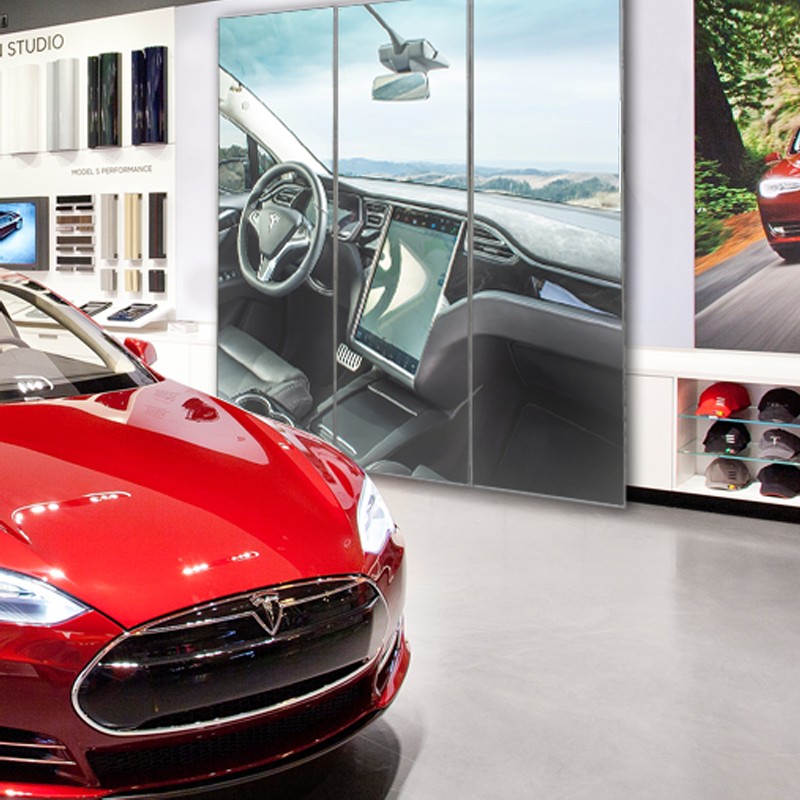

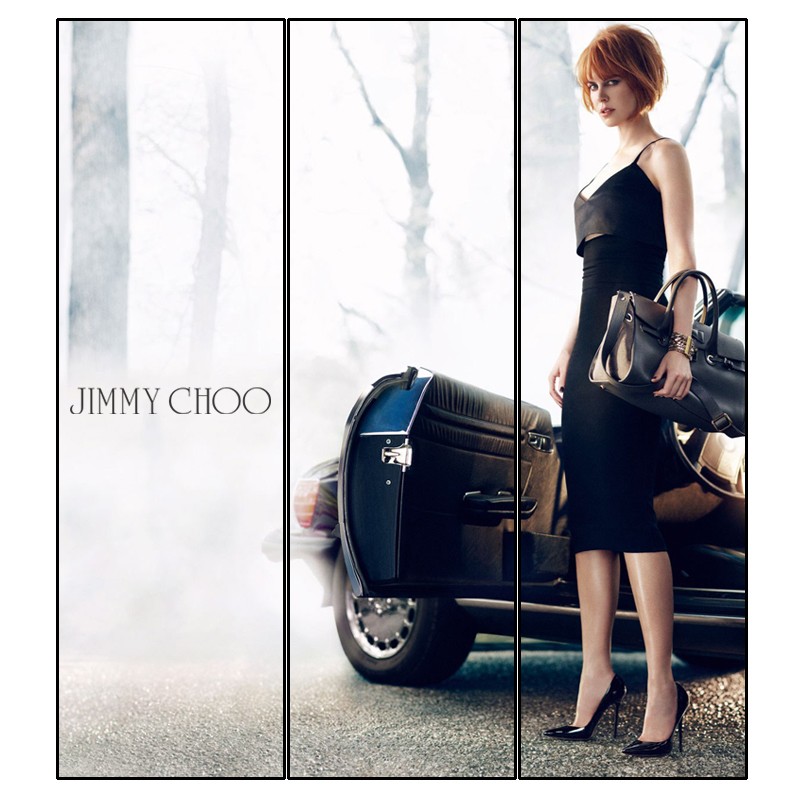

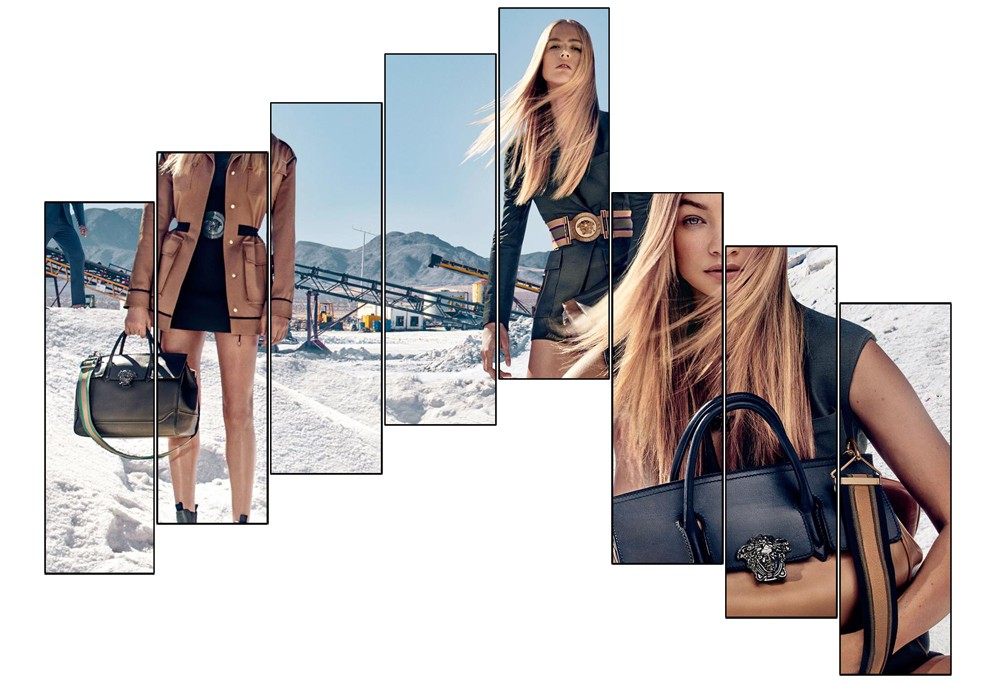

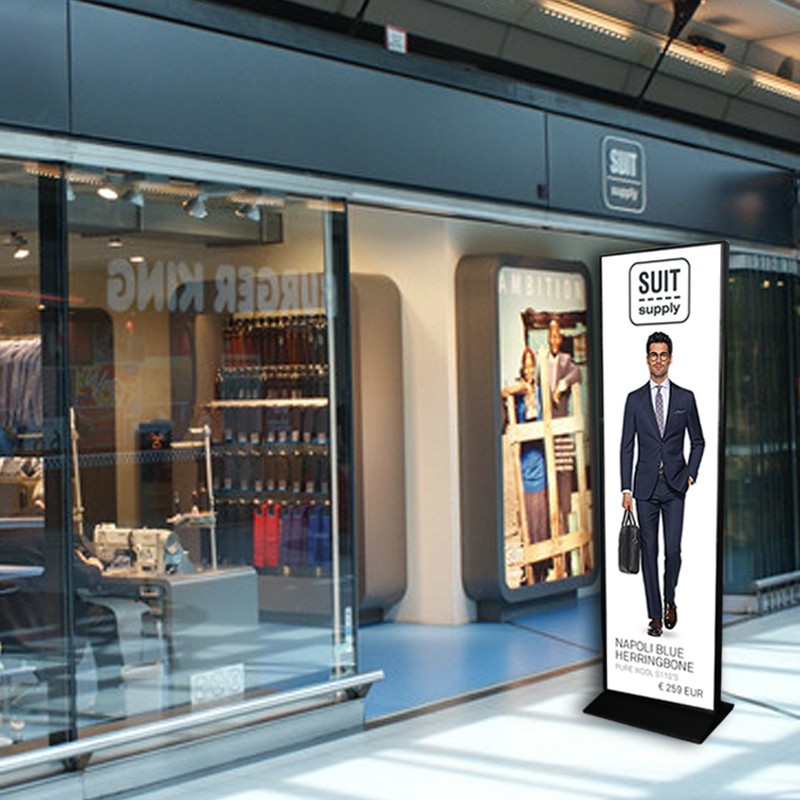

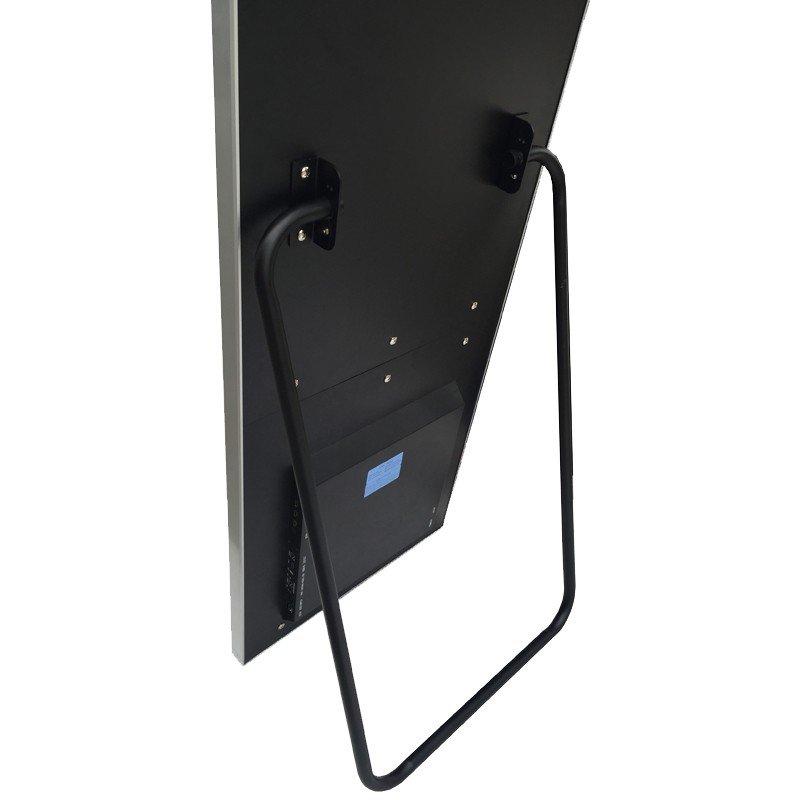

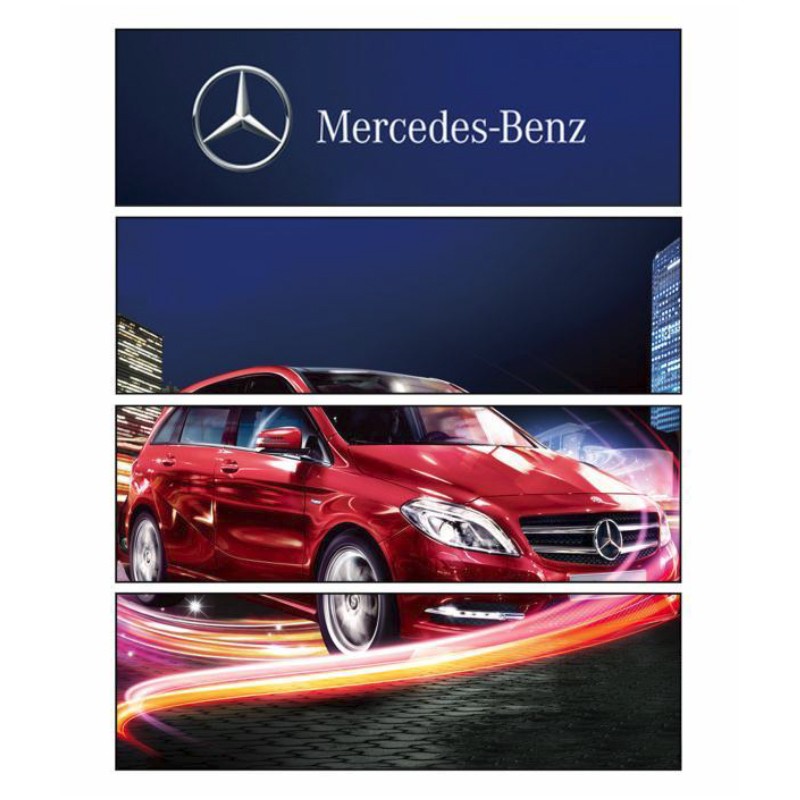

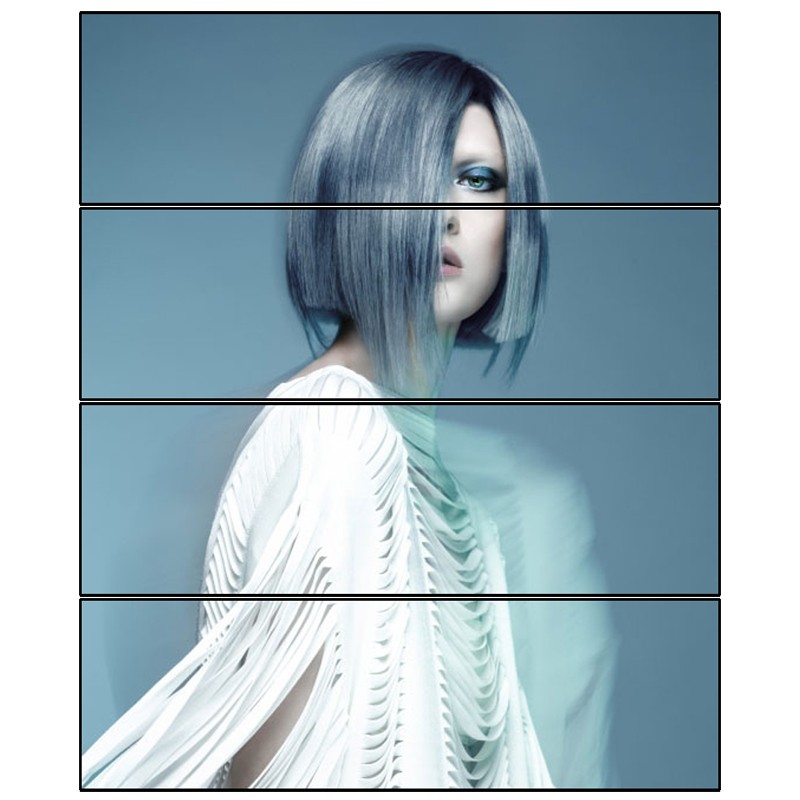

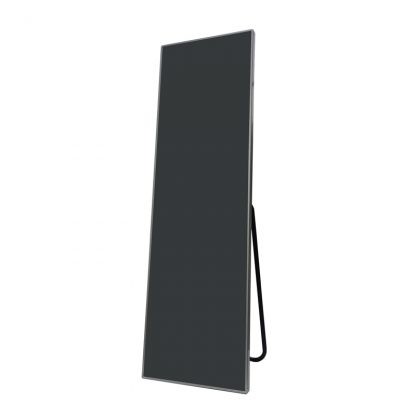

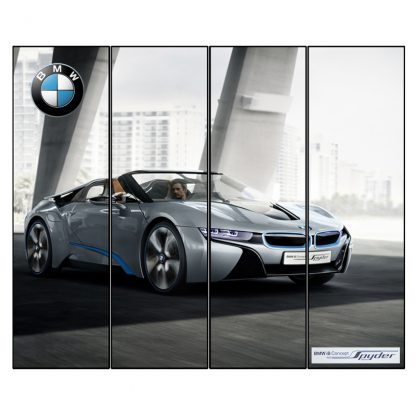

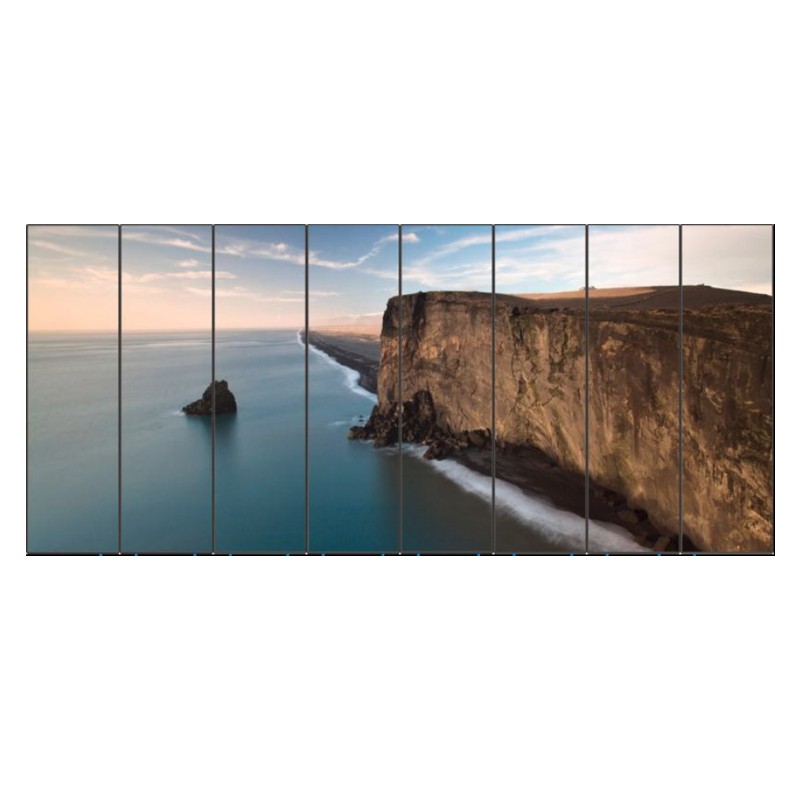

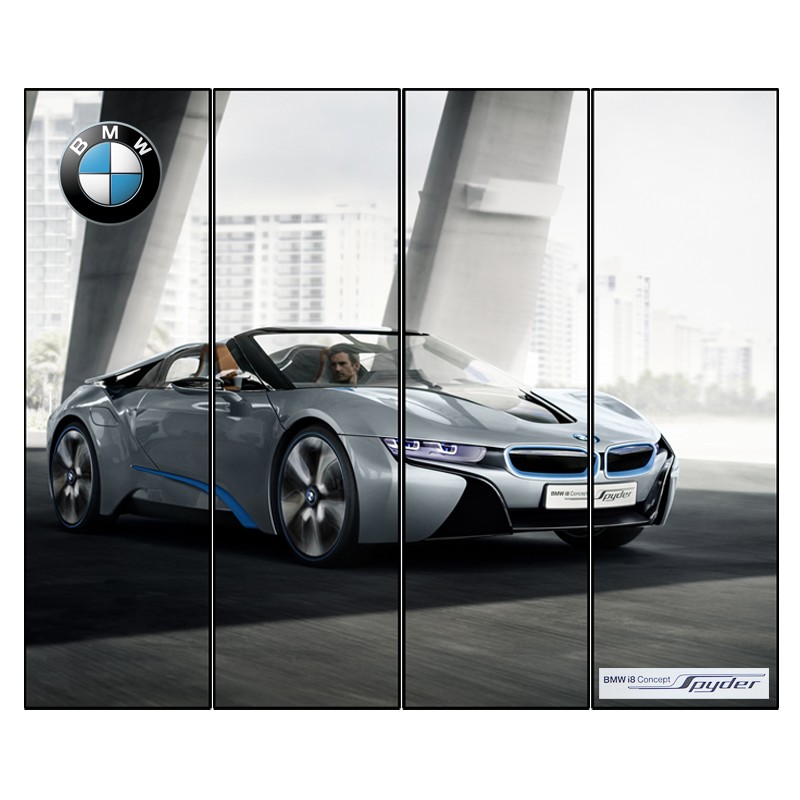

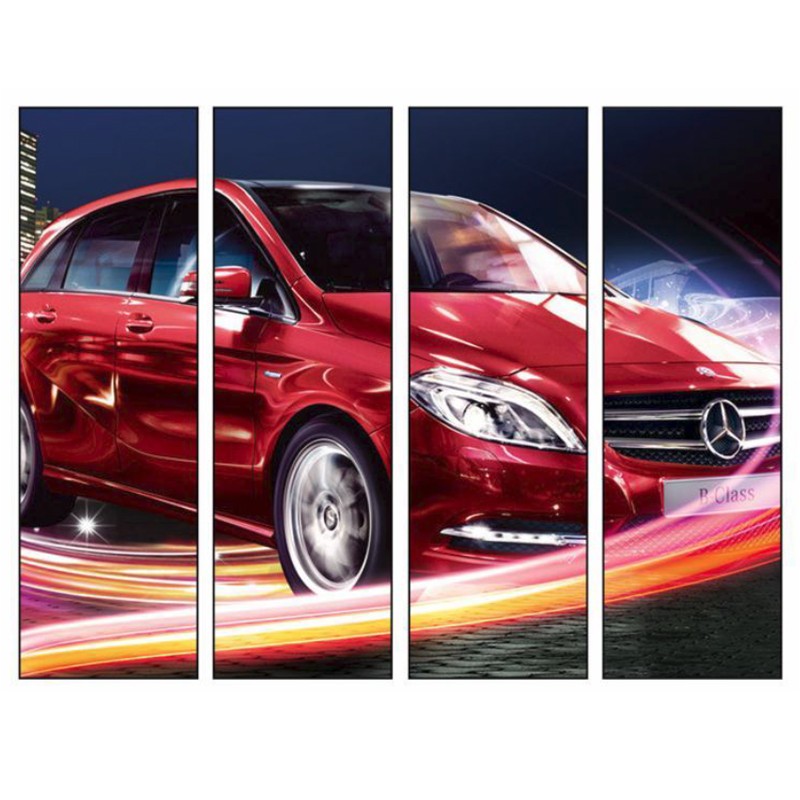

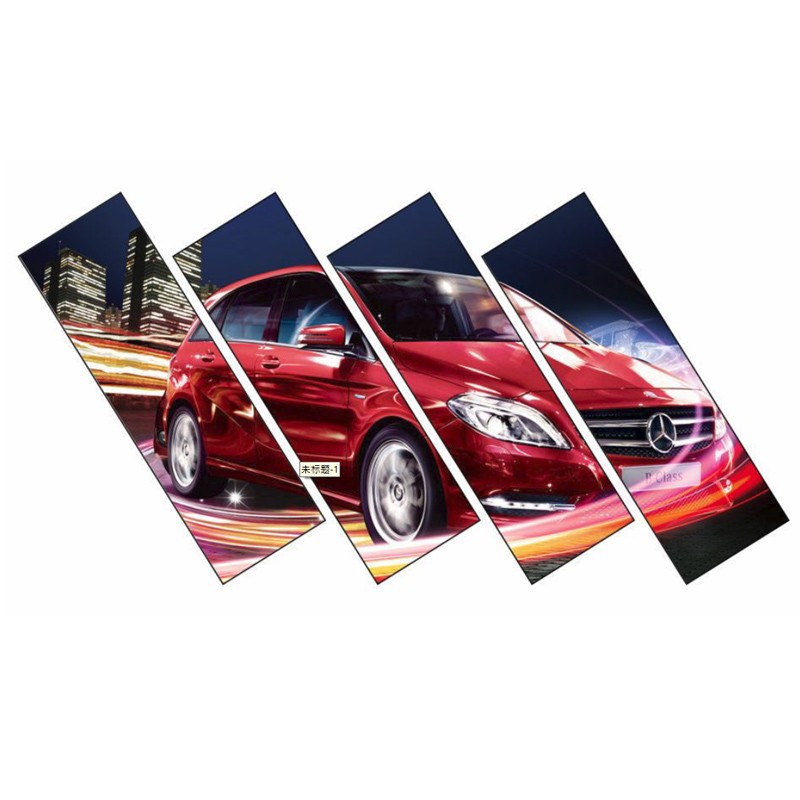

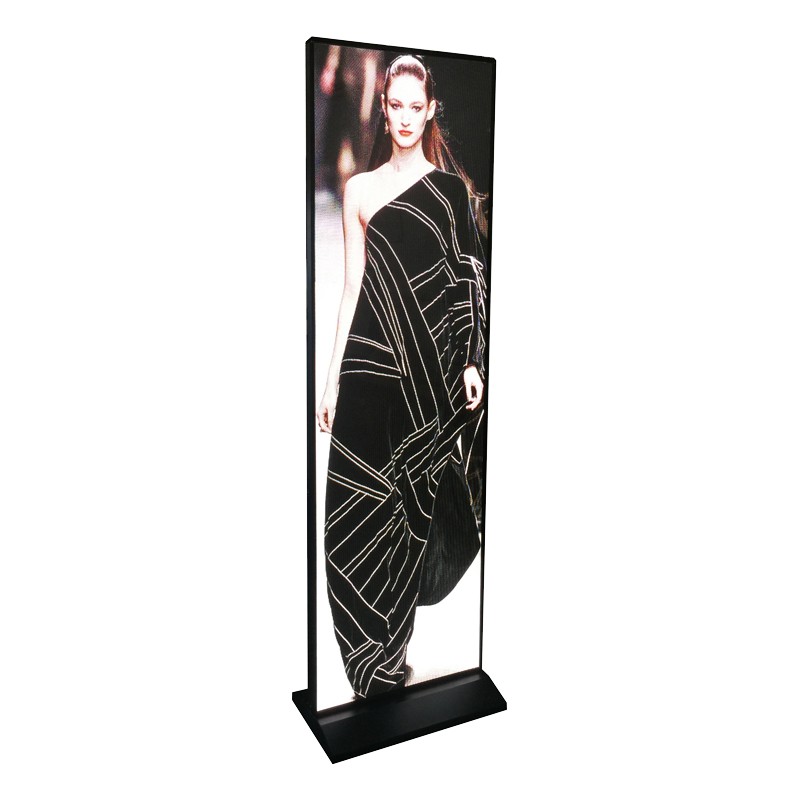

The LED Poster is available as stand alone solution or in a cascading (multiple panels) setup. It can be mounted on the wall or the ceiling of your shop or on a foot stand. Also a fold out stand is possible.

APPEARANCE

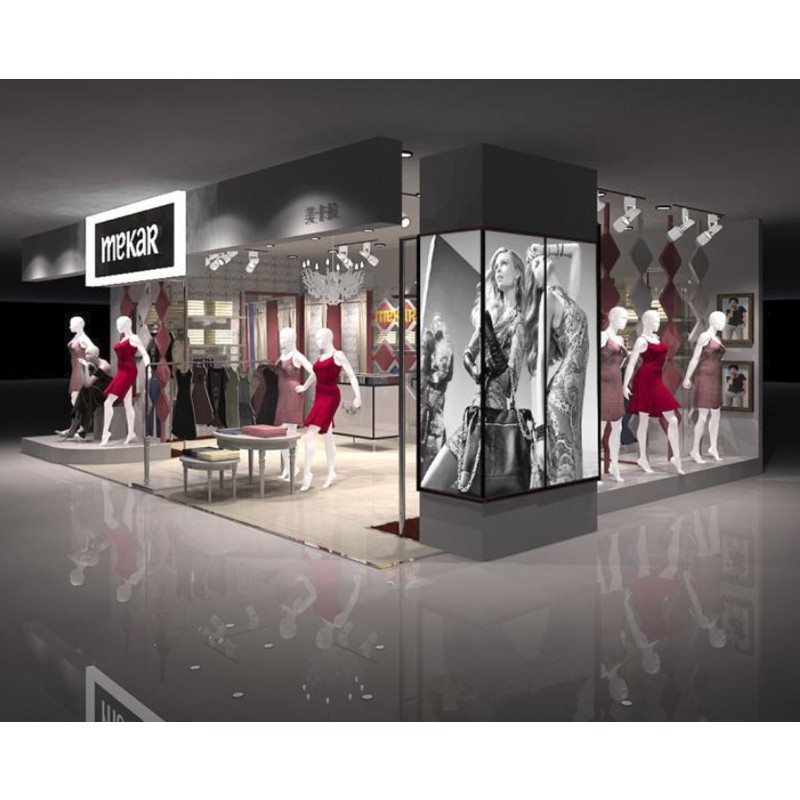

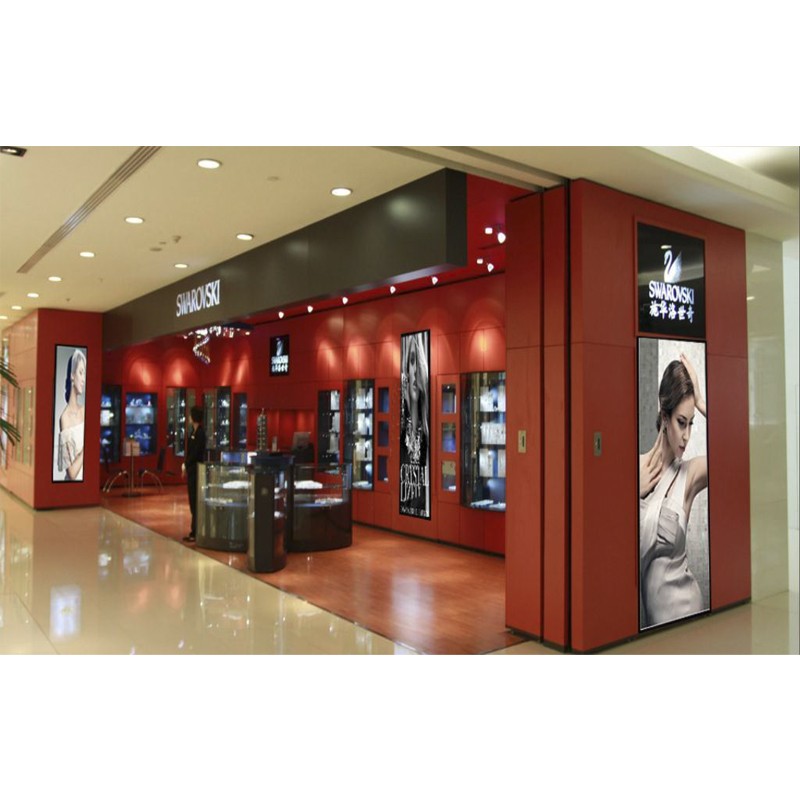

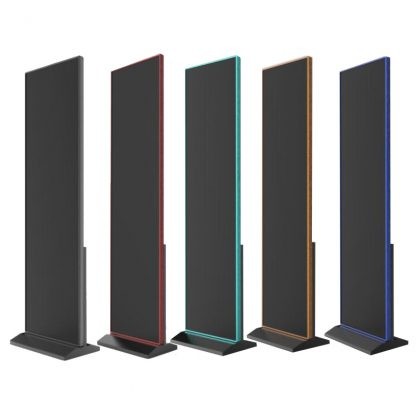

The elegant appearance of the poster makes it a perfect tool for in shop presentations. It has an aluminium alloy frame, an acrylic protective glass surface and is available in different colors.


Specifications:


OPTICAL PARAMETERS

Pixel Pitch (mm)2.571
LED TypeSMD
Pixel Density (pixel/sq.m.)169344
Viewing Angle (H/V)160° / 160°
Brightness(cd/sq.m.)>1000
Refresh Rate(Hz)300~4000
Optimized Viewing Distance (m)2.5~38

ELECTRICAL PARAMETERS

Average Power Consumption (W/screen)210
Max. Power Consumption (W/screen)210
Input VoltageAC110V or AC220V±10% 50/60Hz
Input InterfaceEthernet / HDMI / USB

STRUCTURE PARAMETERS

Module Size in Pixel (W×H)112×84
Module Size in mm (W×H)288×216
Display Size in Pixel (W×H)224×756
Display Size in mm (W×H×D)576×1944×40

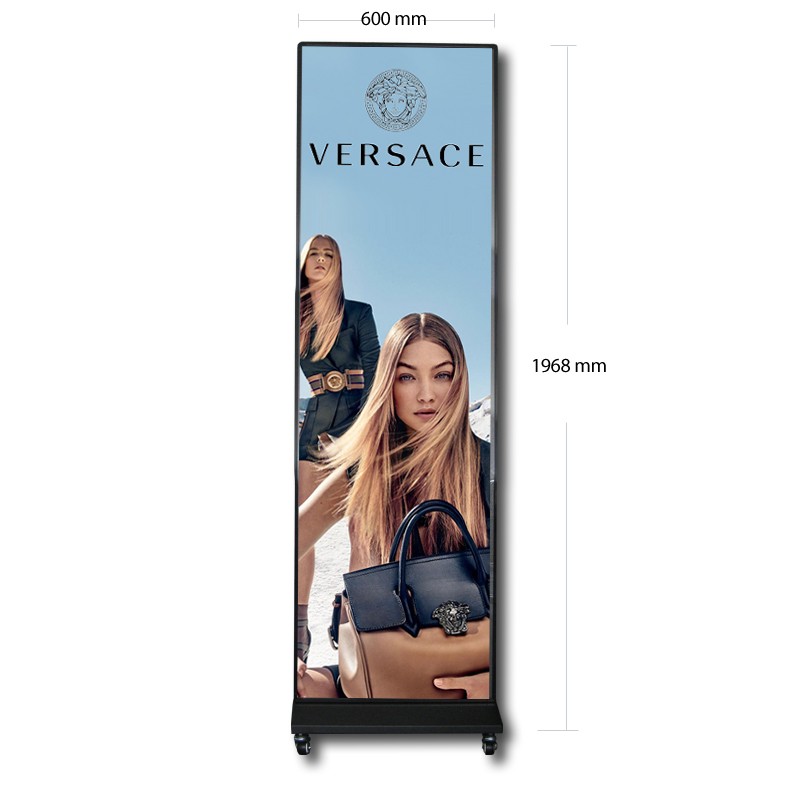

Overall Dimension in mm (W×H×D)600×1968×65
Weight (kg)35
IP RatingIP40 Front / IP40 Rear
Processing12 Bits

OPERATION PARAMETERS

MaintenanceRear
Operating Temperature-10℃~50℃
Operating Humidity10~90RH%
